VT2IS.SPA40.LEA.2800.6.1+3.2
Version with motorized thickness device up to 40 mm pneumatic selection of brushes for LOW-E. glass.
| # | Category | Value |
|---|---|---|
| 1 | Working width | 2500 mm |
| 2 | Working height | 640 +30 mm |
| 3 | Overall dinimensions | 1968 mm (L) 1900 mm (W) 3790 mm (H) |
| 4 | Glass thickness | 3 -40 mm |
| 5 | Working speed | 2 -8 m/min |
| 6 | Voltage-frequency-phases | 380 V 50 Hz 3 Ph |
| 7 | Installed power | 26 KW |
| 8 | Minimum glass | 300 x 150 mm |
.jpg)
- Automatic brush selection for LOW-E. glass
- Automatic glass thickness detection
- Prewashing with spraying bars with pair of brushes fed by high pressure pump
- Independent brush motorisation
- Optimization lighting lamps in automatic for Energy saving
- Partial automatic spraying bars
- Energy saving system “ SMART STAND BY “, customized
- Storage of small glass pieces on the outlet conveyor

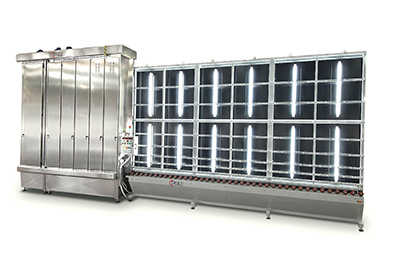

VT2IS.SPA40.PLEA.3300 JUMBO
| # | Category | Value |
|---|---|---|
| 1 | Working width | 3300 mm |
| 2 | Working height | 550 +30 mm |
| 3 | Overall dinimensions | 8708 mm (L) 1900 mm (W) 4500 mm (H) |
| 4 | Glass thickness | 3 -40 mm |
| 5 | Working speed | 2 -8 m/min |
| 6 | Voltage-frequency-phases | 380 V 50 Hz 3 Ph |
| 7 | Installed power | 31 KW |
| 8 | Minimum glass | 400 x 200 mm |
OPEN TOP – VOT.SP50.1800.4.1+1.2
Thickness up to 50 mm by motorized thickness device with display
| # | Category | Value |
|---|---|---|
| 1 | Working width | 1800 mm |
| 2 | Working height | 850 +30 mm |
| 3 | Overall dinimensions | 4920 mm (L) 1900 mm (W) 3100 mm (H) |
| 4 | Glass thickness | 2 -50 mm with safety device |
| 5 | Working speed | 2 -7 m/min |
| 6 | Voltage-frequency-phases | 380 V 50 Hz 3 Ph |
| 7 | Installed power | 16 KW |
| 8 | Minimum glass | 300 x 150 mm |
