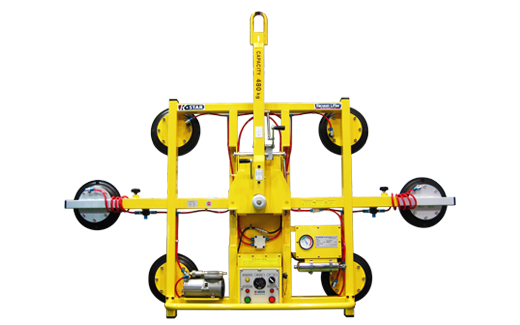

Model : KSHSN-50606
Specifications :
- Lifting capacity : 480kgs.
- 250mm vacuum pad x 6ea.
- DC 12V, 18Amp Battery.
- Manual 90' Tilting.
- Manual 90' Rotation.
- Extension arm : 2ea.
- Life time of Battery : 2 hours (Working Time) about 300 time.
- Recharge Time : Max. 5 hours.
Applications :
- Operated by Battery.
Model : KSHSN
Specifications :
- Lifting capacity : 320kgs.
- 250mm vacuum pad x 4ea.
- DC 12V, 18Amp Battery.
- Manual 90' Tilting.
- Manual 90' Rotation.
- Life time of Battery : 2 hours (Working Time) about 300 time.
- Recharge Time : Max. 5 hours
Applications :
- Operated by Battery.
- Ideal for narrow and medium size of glass work (for Contruction site).
Caution :
- There should be enough working space especially the height in order to avoid safety related accidents.
- Do not use exceeding its capacity of 320kg.
Model : KSHS 시리즈
Specifications :
- Battery is bulit-in.
- Life time of Battery : 8 hours (Working Time).
Applications :
- Ideal for construction site for Curved glass.
- Suitable for Automotive glass.
