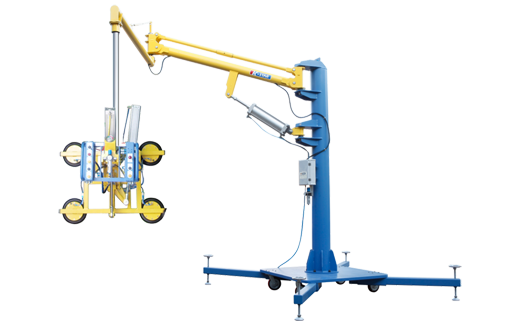

Model : MJC-250
Specifications :
- Lifting Capacity : 250kgs.
- Arm length : Max. 4,000mm.
- Height : 3,500mm.
- Radius of Rotation : 260 degree.
Applications :
- It required only pneumatic power.
- Operator requires only minimum amount of effort to move an object.
- It is almost maintanence-free.
- Additional features of Tilting and Rotating can be added.
- Application -
- Bags, Marble, Stone , Steel & Metal plates , Woods, MDF , Glass & Acrylic sheets.
Caution :
- It requires between 6~8 bar of compressed air.
- We provide Vacuum lifter separately.

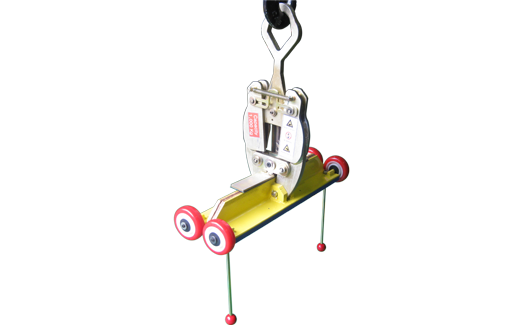

Model : KSGG-819/KSGG-1945
Specifications :
- Product Size : 520(L) x 360(W) x 400(H)mm.
- Net weight : 25kgs.
- Lifting capacity : 1,000kgs.
- Glass thickness :
- KSGG-819 : 8~19mm
- KSGG-1945 : 19~45mm
Applications :
- It is to use in glass lifting to be hooked up this plier to Hoist simply.
- Durable and Easier to operate to be transported any glass rapidly to increase production efficiency.
Caution :
- The Joint Hook should be hooked up the ring of Hoist strongly.
- The glass should be inserted into the clamp pad when it is open.
- Clamp pad is replacement parts.
- Do not use over 1,000kgs.
- Use over 8mm thinckness of glass.
Model : KSAF-03
Specifications :
- Lifting Capacity : 480 kgs.
- Vacuum pad x 6 pcs.
- Glass : Min. 1,750mm x 950mm.
- Function : Manual 90' Tilting, Manual 90' Rotation.
- Arm sliding x 2 pcs.
- Power supply : 220V, 1P, 50/60Hz.
Applications :
- Ideal for either of Factory and Construction work.
- Vacuum pad :
- KSPD-241 (250mm) : for Construction.
- KSPD-236 (240mm) : for Factory.
- 3pcs of Shut off valve to lift a small size of glass.
- There are 2pcs of Extension arms to lift a larger size.
Caution :
- Make sure the surfaces of glass should be clean.
- Be careful not to give any damage to the vacuum pad and protect the pads with its cover while not being used.
- Make sure to follow the Maximum lifting capacity for your safety.
